Plafond XD

PLA-FC-12-1x125-A1L-0800-2.0-80-15-P5+PLA-FC-BADGE-2400-NON-9003+2xPLA-DG-BADGE-9003
Generate PDF Add to project
  • Product information
  • Results
  • View in 3D
MISSING

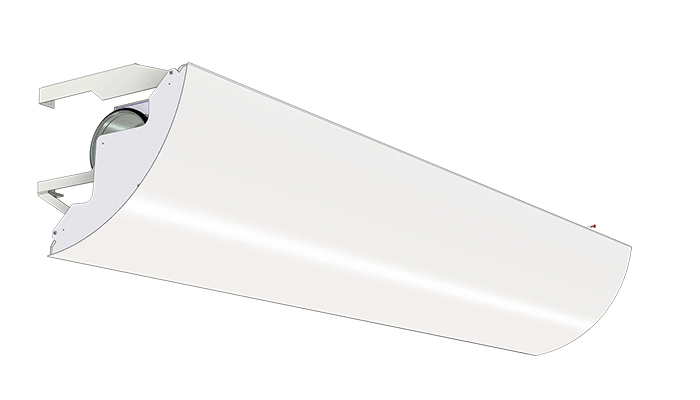

Exposed supply air beam

Lindab´s new Plafond XD is basically an exposed design active chilled beam solution for ventilation, cooling and heating which helps you to create a perfect indoor climate in rooms without suspended ceilings.
The new concept with separate technical Body and (Design-)Cover, available in many different designs make the new Plafond XD function 100 % as a corresponding architectural element fitting into your room and building architecture.
All technical parts as the Plafond XD Body, connections, cabling, valves, actuators and other plus features or accessories, can easily be hidden behind Plafond XD Cover.

  • The primary air volume can be pre-adjusted in the factory and later easily be re-adjusted with Lindab’s tool less patented JetCone system,
  • The Angled Nozzles system for air outlet, secures a perfect air spread pattern that reduces draft risk without losing capacity.
  • The Plafond XD Cover is available in seven different designs.
  • The beam can be easily integrated/used in a Pascal water system to enable VAV/DCV.
  • Lindab´s active chilled beams are Eurovent-certified and tested according to EN-15116.
  • Results
    Cooling
    Temp. difference between room air temp. and mean water temp.
    Δtrw
    K
    Nominal water capacity
    Pwnom
    W
    Water flow rate
    qw
    l/s
    Corrected water capacity
    Pw
    W
    Capacity air
    Pa
    W
    Total Capacity
    Pt
    W
    Pressure loss water in product
    ΔpwP
    kPa
    Sound power level
    LwA
    dB(A)
    Sound pressure level
    LpA
    dB(A)
    Natural convection
    W
    Water capacity / active length
    Pw/Lact
    W/m
    Mixed air temperature
    tam
    °C
  • Total results
    Primary airflow rate
    qat
    l/s
    Water flow rate
    qwt
    l/s
    Total Capacity
    Pt
    W
    Total estimated dry weight
    kg
    Total estimated wet weight
    kg
  • Additional results
    Penetration length, horizontal (min)
    Xlp
    m
    Penetration length, horizontal (max)
    Xlp
    m
    Added pressure loss in connection
    Δpa
    Pa
    Total air pressure loss in duct
    Δpt
    Pa
    Primary airflow rate / active length
    qa/Lact
    l/s/m
    Induction ratio
    qai/qa
    Induction air volume
    qai
    l/s
    Mixed air volume
    qam
    l/s
    K-factor work range
    Kf
    Airflow work range
    qa
    l/s
    Estimated dry weight
    kg
    Estimated wet weight
    kg
