Plenum box
Plenum box type
Duct connection size
Diffuser connection size
Function
Connection
Working setup
Air volume
qv
Room attenuation
Dr
dB
Adjustment pressure
Δp
Pa
Description
Usercode
Calculate

RC15

RC15-160-S+MBC-100-160
Generate PDF Add to project
  • Product information
  • Results
  • View in 3D
MISSING
Swirl diffuser

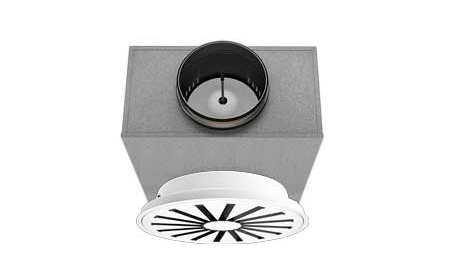

RC15 is a circular swirl diffuser with adjustable bars. The diffuser can be used for both supply and extract air. The swirl pattern ensures high induction and a large dynamic range, and is therefore ideal for the horizontal supply of very cold air.
The diffuser can also be set to a vertical supply air pattern, enabling supply of heated air.
Installing a RC15 diffuser in a plenum box type MB can help to achieve a stable flow of air to the diffuser as well as realise the potential for individual adjustment.
Damper type B is an unique linear cone damper which allows to use the full operational area (0-100%) and allows to balance with a high pressure drop over the box with low sound generation. Furthermore the construction of the damper gives an accurate and reliable measurement.
Damper type C and E are with rotating blade dampers for respectively supply and extract. Typically used in applications that don’t require a high balancing pressure in the plenum box

  • Large dynamic range
  • High induction
  • Suitable for cooling at very low temperatures
  • Horizontal or vertical supply air pattern
  • Can be used for both supply air and extract
  • Plenum box with several damper options
Face velocity
v
m/s
Total pressure loss
Δpt
Pa
Sound power level
LwA
dB(A)
Sound pressure level
LpA
dB(A)
Throw
L0.2
m
Estimated weight
kg
  • Pressure and sound power diagram
    MISSING
    Hz 63 125 250 500 1K 2K 4K 8K
    Coct 1 7 2 0 -9 -13 -23 -17
    ΔL 17 15 5 12 19 20 20 21
Logo RC15-MBC
