Plenum box

Plenum box type

Duct connection size

Diffuser connection size

Function

Connection

Working setup

Air volume

q_v

Room attenuation

D_r

Adjustment pressure

Δp

Description

Usercode

Calculate

NC19

NC19-125+MBC-100-125

Generate PDF Add to project

Product information
Results
View in 3D

Nozzle diffuser

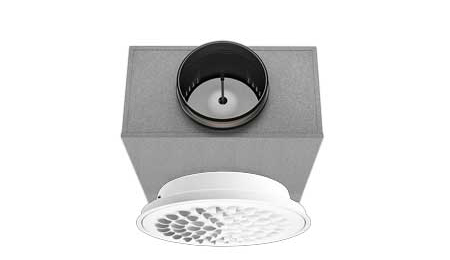

NC19 is a circular diffuser with individually adjustable nozzles. The diffuser is suitable for the horizontal supply of cooled air, where great flexibility in the dispersal pattern is required. The diffuser can also be set to a vertical supply air pattern, enabling supply of heated air.
Installing a NC19 diffuser in a plenum box type MB can help to achieve a stable flow of air to the diffuser as well as realise the potential for individual adjustment.
Damper type B is an unique linear cone damper which allows to use the full operational area (0-100%) and allows to balance with a high pressure drop over the box with low sound generation. Furthermore the construction of the damper gives an accurate and reliable measurement.
Damper type C is with a rotating blade damper for supply air. Typically used in applications that don’t require a high balancing pressure in the plenum box.
