LKAN

LKAN-125+MBE-100-125
Generate PDF Add to project
  • Product information
  • Results
MISSING
Plain square diffuser

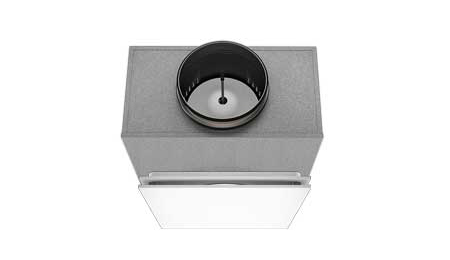

LKAN is a square diffuser with an unperforated face plate. LKAN can be used for both supply and extract air and is suitable for the horizontal supply of cooled air.
Installing a LKAN diffuser with a plenum box type MB can help to achieve a stable airflow to the diffuser as well as realise the potential for individual adjustment.
Damper type B is an unique linear cone damper which allows to use the full operational area (0-100%) and allows to balance with a high pressure loss over the box with low sound generation. Furthermore the construction of the damper gives an accurate and reliable measurement.
Damper type C and E are with rotating blade dampers for respectively supply and extract. Typically used in applications that don’t require a high balancing pressure in the plenum box

  • Suitable for both supply and exhaust air.
  • Suitable for the horizontal supply of cooled air.
  • Plenum box with several damper options
  • Circular cut-out measure, makes assembly of tightness-
    optimal membrane.
Face velocity
v
m/s
Total pressure loss
Δpt
Pa
Sound power level
LwA
dB(A)
Sound pressure level
LpA
dB(A)
Throw
L0.2
m
  • Pressure and sound power diagram
    MISSING
    Hz 63 125 250 500 1K 2K 4K 8K
    Coct 9 5 4 -4 -7 -12 -15 -23
    ΔL 20 17 6 16 18 20 18 22
Logo LKAN-MBE
