GS23

GS23-H-E-2-125
Generate PDF Add to project
  • Product information
  • Results
  • View in 3D
MISSING
Perforated diffuser

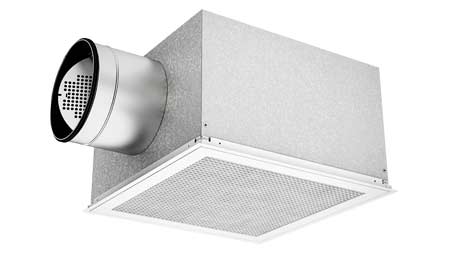

GS23 is a square diffuser with an aluminium grid. GS23 is used for extract. Installing a GS23-V diffuser in a plenum box type MB can help to achieve a stable flow of air to the diffuser as well as achieving the option for individual adjustment of air flow.
Damper type B-E is an unique linear cone damper which allows to use the full operational area (0-100%) and allows to balance with a high pressure drop over the box with low sound generation.
Damper type E has a rotating blade damper for extract air. Used for applications that don’t require a high balancing pressure in the plenum box.

  • High capacity
  • Can be installed with a plenum box with several damper options
Total pressure loss
Δpt
Pa
Sound power level
LwA
dB(A)
Sound pressure level
LpA
dB(A)
  • Pressure and sound power diagram
    MISSING
    Hz 63 125 250 500 1K 2K 4K 8K
    Coct 4 4 5 -3 -9 -11 -18 -25
    ΔL 17 16 5 9 10 4 5 5
